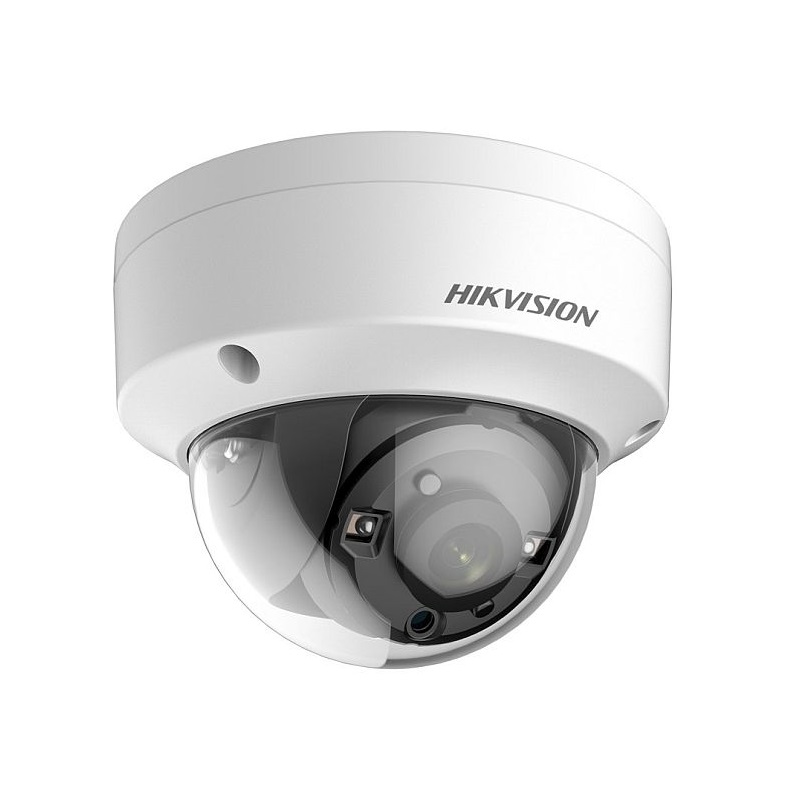

Hikvision DS-2CE56D8T-VPITF-28

• 2 Mpix 16:9 biela  kamera ,
• 4v1 (TVI,CVI,AHD,CVBS)
• objektív 2,8 mm,
• uhol záberu 103°,
• citlivosť 0,005 Lux @ (F1.2, AGC Zap.)
• krytieIP67

Formát videa                                                              4 v 1 (TVI, CVI, AHD, CVBS)

Rozlíšenie                                                                    2 Mpix 16:9

Prostredie                                                                   Vonkajšie

Maximálne rozlíšenie                                             1920 x 1080

Snímací prvok                                                            2MP progressive scan CMOS

Snímkovanie                                                              25 fps (1920 x 1080)

Elektronická uzávierka                                           1/25 až 1/50,000 s

Objektív                                                                       2,8 mm

Zaostrovanie                                                                   -

Clona                                                                   F2,0

Vodorovný uhol záberu                                         103°

Režim deň / noc                                                        áno

Citlivosť                                                                        0,005 Lux @ (F2.0, AGC Zap.)

WDR                                                                              120dB

Odstup signál/šum                                                  -

IR prisvietenie                                                           EXIR

Dosah IR prisvietenia                                              20m

Potlačenie šumu                                                       3D DNR

OSD menu                                                                   áno

3D nastavenie polohy                                             áno - vodorovne 360°, zvisle 90°, otáčanie 360°

Anti-flicker                                                                  -

Privátne zóny                                                             4

Detekcia pohybu                                                      4 programovateľné oblasti

Difgitálne funkcie                                                     BLC, HLC, zrkadlo, prevrátenie

Komunikácia                                                               po koaxiálnom kábli - protokol: Pelco-C(Coaxitron)

Digitálny vstup / výstup                                         -

Napájanie po koaxiále (PoC)                               nie

Napájanie                                                                    12VDC

Parametre napájania                                              12 VDC ±25%

Spotreba                                                                      3,5W

Prevádzková teplota                                               -40°C-+60°C

IP krytie                                                                        IP67

IK krytie                                                                        IK7

Materiál tela                                                               kov

Rozmery                                                                      φ111 mm × 83 mm

Hmotnosť                                                                    350g

Príslušenstvo                                                             montážna šablóna
